The Impact of Concrete Permeability on Durability: An Analysis Based on International Standards
In the field of concrete engineering, durability is defined as the ability of a concrete structure to resist weathering action, chemical attack, abrasion, and other deterioration processes throughout its intended service life. While compressive strength has historically been the primary measure of concrete quality, modern standards, particularly those from the American Concrete Institute (ACI) and ASTM International, recognize that permeability is the single most critical property governing long-term durability.
What is Concrete Permeability?
Permeability is the property that describes the ease with which fluids (liquids or gases) can move through the pore structure of hardened concrete. Concrete is inherently a porous material, containing a network of capillary pores, entrapped air voids, and micro-cracks. It is the size, volume, and interconnectivity of these pores that determine the concrete's permeability.
A low-permeability concrete has a dense, disconnected pore structure, making it highly resistant to the ingress of harmful substances. Conversely, a high-permeability concrete acts like a sponge, readily absorbing water and dissolved chemicals from its environment.
How High Permeability Leads to Deterioration: Key Mechanisms
High permeability is the primary gateway for nearly all major concrete deterioration mechanisms. The lower the permeability, the more resilient the concrete will be against the following attacks:
Chloride-Induced Corrosion of Reinforcing Steel:

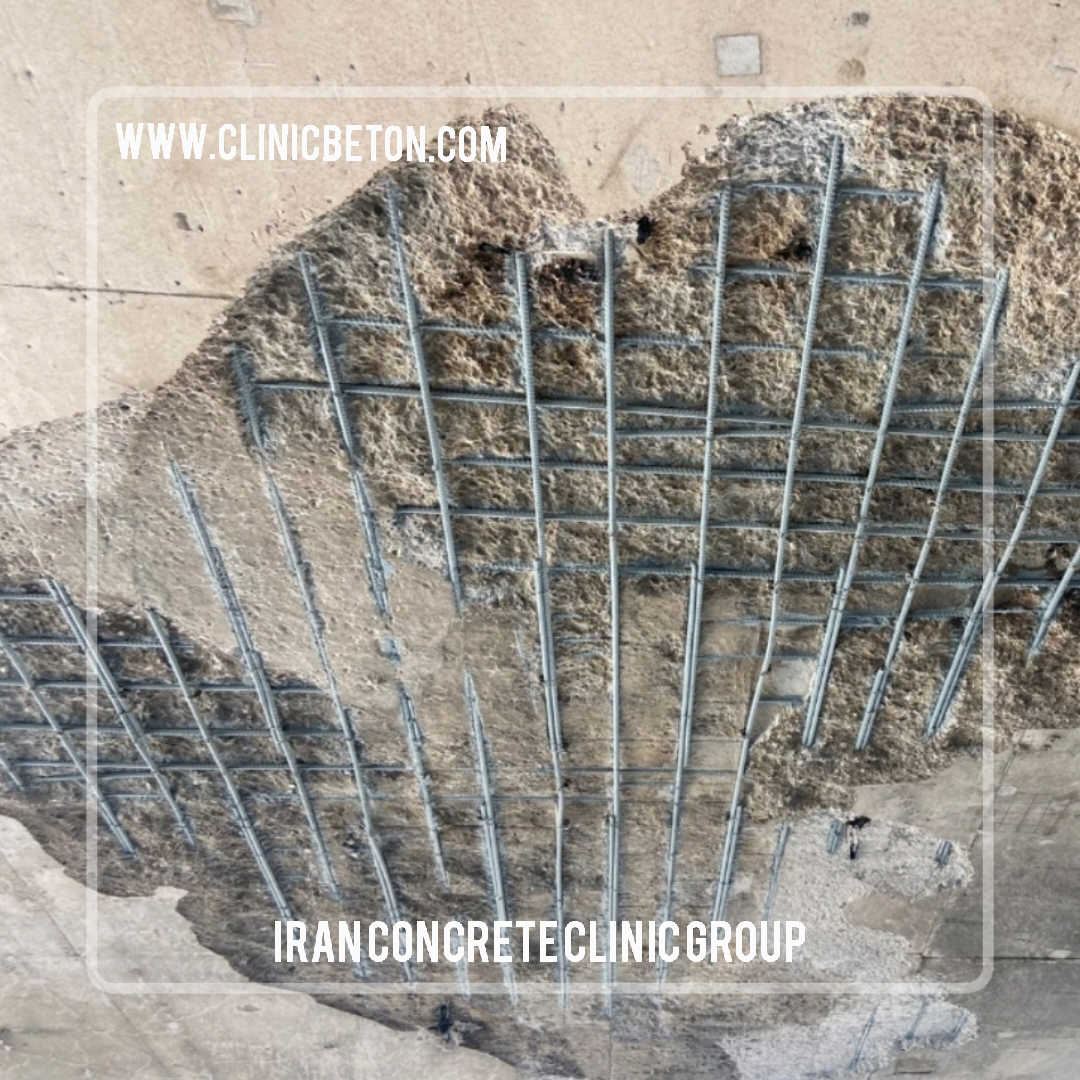

Mechanism: This is the most common cause of premature deterioration in reinforced concrete structures. Chloride ions (from de-icing salts, seawater, or contaminated aggregates) penetrate the concrete. Once their concentration at the steel surface reaches a critical threshold, they break down the protective passive oxide layer on the rebar, initiating a corrosion process. This corrosion is an expansive reaction, causing cracking, spalling, and eventual structural failure.
Standard Reference: ACI 201.2R, "Guide to Durable Concrete," extensively details this process and emphasizes that controlling permeability is the first line of defense.
Sulfate Attack:
Mechanism: Sulfates present in soil, groundwater, or industrial wastewater can penetrate the concrete and react with components of the hydrated cement paste (like calcium hydroxide and calcium aluminate). This reaction forms expansive products (ettringite and gypsum), which generate immense internal pressure, leading to cracking, expansion, and a complete loss of concrete integrity.
Standard Reference: ACI 201.2R defines severity classes for sulfate exposure and recommends specific measures, such as using sulfate-resistant cement and reducing permeability with SCMs, to mitigate this risk.
Carbonation:
Mechanism: Atmospheric carbon dioxide (CO₂) dissolves in the concrete's pore water, forming a weak carbonic acid. This acid reacts with the alkaline calcium hydroxide in the cement paste, reducing the concrete's pH from around 12.5-13.5 to below 9. This process, known as carbonation, destroys the passive protective layer around the reinforcing steel, leaving it vulnerable to corrosion even in the absence of chlorides.
Relevance: The rate of carbonation is directly proportional to the concrete's permeability.
Freeze-Thaw Cycles:
Mechanism: In cold climates, water that has penetrated the concrete's pore structure freezes. As water turns to ice, it expands by approximately 9% in volume. This expansion creates immense internal hydraulic pressures that can fracture the cement paste, leading to surface scaling, pop-outs, and deep cracking over time.
Standard Reference: The use of air-entraining admixtures is the primary defense, but low permeability is crucial to limit the amount of water available to freeze.
Alkali-Silica Reaction (ASR):
Mechanism: This is a chemical reaction between the alkaline cement paste and certain reactive forms of silica found in some aggregates. The reaction forms an expansive gel that absorbs water, swells, and causes map-cracking and structural damage.
Relevance: The presence of water is essential for the ASR gel to expand. A low-permeability concrete limits the water supply, significantly slowing down or even halting the damaging reaction.
Standard Test Methods for Assessing Permeability
Reputable standards provide methods to quantify concrete's resistance to ion ingress, which is an indicator of its permeability.
ASTM C1202 - Rapid Chloride Permeability Test (RCPT): This is the most widely used test. It measures the electrical charge passed through a concrete sample over 6 hours. The result, in Coulombs, is used to classify the concrete's permeability from "Very Low" to "High."
ASTM C1556 - Bulk Diffusion Test: A more accurate but time-consuming method that measures the actual diffusion profile of chlorides into concrete over a period of weeks.
ASTM C642 - Standard Test Method for Density, Absorption, and Voids: A simpler test that measures the water absorption of concrete, providing a general indication of its porosity.
Achieving Low-Permeability (Durable) Concrete
The principles for creating durable, low-permeability concrete are well-established and are the focus of high-performance concrete design:
Low Water-to-Cementitious Materials Ratio (w/cm): This is the most important factor. A lower w/cm ratio (typically below 0.45) results in a denser, less porous capillary structure after hydration.
Use of Supplementary Cementitious Materials (SCMs):
Silica Fume (Microsilica): Products like Dezomix 4500 are extremely effective. The ultra-fine particles fill the spaces between cement grains (particle packing), and their high pozzolanic reactivity creates additional dense calcium-silicate-hydrate (C-S-H) gel, blocking pores.
Fly Ash & Slag Cement: These SCMs also react to refine the pore structure and consume calcium hydroxide, increasing resistance to sulfate attack.
Use of High-Range Water Reducers (Superplasticizers): Admixtures like Dezobuild D-10 or Dezobuild ESR are essential. They allow for a very low w/cm ratio while maintaining excellent workability for proper placement and consolidation.
Proper and Extended Curing: Curing (e.g., with compounds like Dezocure 550) is vital to ensure that the cementitious materials fully hydrate, which is the process that refines the pore structure and reduces permeability.
Surface Protection Systems: As a final line of defense, applying protective coatings and waterproofing systems like Betograd SN-125 or Nanodez P2 can prevent aggressive agents from ever coming into contact with the concrete surface.
Conclusion:
In accordance with global standards and decades of research, it is clear that permeability is the gateway to durability failure. A strong but permeable concrete structure is a liability. Therefore, modern concrete design and quality control must prioritize the achievement of a dense, impermeable microstructure. This is the single most effective strategy for ensuring the long-term service life, safety, and sustainability of concrete structures in any environment.
