The Critical Role of Grout in Construction and Industry
In the world of construction and heavy industry, success often depends on the smallest details. While massive structures of concrete and steel are visible to all, the unseen materials that connect and support them are what guarantee their long-term stability, performance, and safety. Grout is one of these essential, high-performance materials.
Grout is a dense, flowable fluid mixture—not to be confused with concrete or mortar—specifically engineered to fill voids, seal joints, and provide robust structural support between two surfaces. Its primary function is to ensure complete and uniform load transfer, eliminating gaps that could otherwise become points of failure under stress or vibration.
The Importance of Using the Right Grout:
Uniform Load Distribution: The most critical function of grout is to transfer static and dynamic loads from a machine base or structural element (like a steel column) to its foundation. A high-quality grout creates a monolithic, incompressible layer that distributes these forces evenly, preventing stress concentration, structural damage, and premature failure.

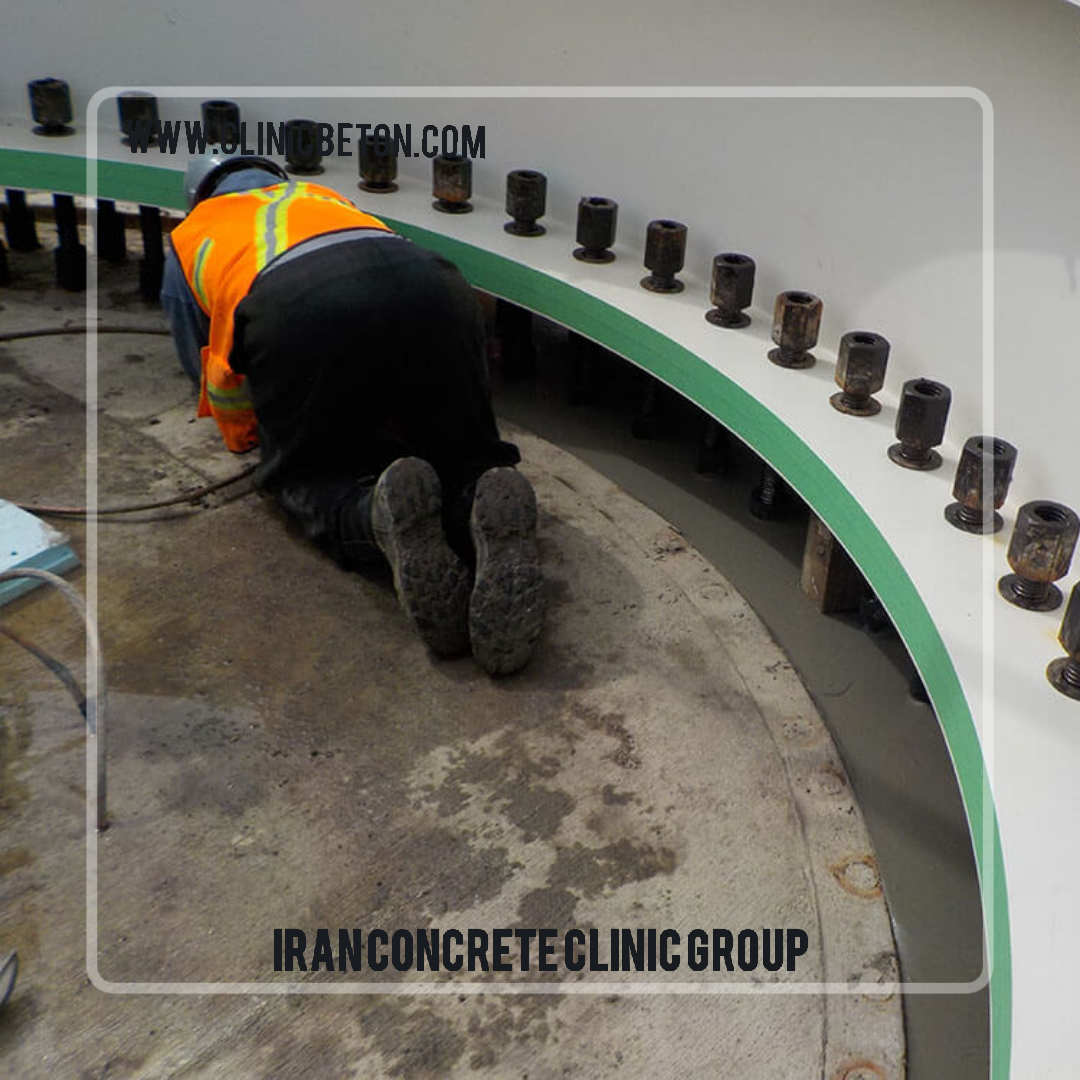

Precision Alignment and Stability: In industrial settings, heavy machinery such as turbines, compressors, generators, and heavy-duty pumps must be perfectly aligned to operate efficiently and safely. Grout is used to fill the space beneath the machine's base plate, locking it into its precise position and maintaining that alignment throughout its service life.
Vibration Damping: High-performance grouts, especially epoxy-based ones, are excellent at absorbing and damping vibrations from operating machinery. This protects the concrete foundation from micro-fracturing and fatigue, reduces operational noise, and extends the lifespan of both the machine and the structure.
Structural Integrity and Anchoring: Grout is essential for securing anchor bolts, dowels, and reinforcing bars into concrete. It provides a powerful bond, ensuring these elements can withstand the tensile and shear forces they are designed for.
Durability and Protection: By filling gaps and voids, grout prevents the ingress of water, chemicals, oils, and other corrosive agents that could otherwise attack the concrete foundation or the steel base plates, leading to deterioration.
Understanding the Main Types of Grout
The selection of grout depends entirely on the application's requirements, such as load type (static vs. dynamic), chemical exposure, required strength, and temperature conditions. The primary types are categorized by their binder material.
Cementitious Grout
This is the most widely used type of grout, based on a blend of Portland cement, fine aggregates, water, and specialized admixtures.
Key Characteristics:
Cost-effective and widely available.
High compressive strength.
Easy to mix and apply.
Similar thermal properties to concrete, making it ideal for concrete-to-concrete connections.
Primary Application: Used for general-purpose applications and structural base plates under static loads, such as steel columns, precast concrete elements, and smaller equipment.
Sub-Type: Non-Shrink Cementitious Grout
This is an advanced formulation designed to counteract the natural shrinkage of cement as it cures. It contains additives that cause a slight, controlled expansion, ensuring a permanent, tight-fitting contact with the surfaces.
Example from RBS-CONTECH: Dezoflow 2500 is a high-strength, non-shrink, precision cementitious grout designed for these critical structural applications.
Epoxy Grout
Epoxy grouts are two or three-component systems consisting of an epoxy resin, a hardener (catalyst), and a specially graded aggregate filler.
Key Characteristics:
Extremely High Strength: Offers compressive and tensile strengths far exceeding those of cementitious grouts.
Superior Chemical Resistance: Highly resistant to acids, alkalis, oils, solvents, and other corrosive chemicals, making it ideal for chemical plants and industrial environments.
Excellent Bond Strength: Creates an incredibly strong bond to both concrete and steel.
Negligible Shrinkage: Cures with virtually zero shrinkage, ensuring perfect surface contact.
Rapid Curing: Achieves high strength much faster than cement-based products, allowing for a quicker return to service.
Primary Application: Essential for applications involving heavy dynamic loads, severe vibrations, and harsh chemical exposure. This includes heavy machinery, crane rails, turbines, reciprocating engines, and critical anchoring systems.
Example from RBS-CONTECH: Dezoflow 650 is a three-component, high-performance epoxy grout engineered for these demanding industrial environments.
Polymer Grouts (e.g., Polyurethane, Vinyl Ester)
These are specialized grouts used for specific applications, often focused on repair and sealing rather than structural support.
Key Characteristics:
Flexibility: Some formulations, especially polyurethanes, remain flexible after curing.
Water Reactivity: Hydrophilic polyurethane grouts react with water to expand and form a dense, closed-cell foam, effectively sealing active water leaks.
Very Low Viscosity: Allows for injection into very fine cracks and fissures.
Primary Application: Primarily used for concrete crack injection, stopping water infiltration in tunnels, dams, and foundations, and for soil stabilization.
Conclusion: More Than Just a Filler
In summary, grout is a vital engineering material, not a simple filler. The decision to use a cost-effective cementitious grout for a static column or a high-performance epoxy grout for a vibrating compressor can be the difference between a structure that lasts for decades and one that fails prematurely. Choosing the correct type of grout is fundamental to the safety, durability, and operational success of any major construction or industrial project.
