Live vs. Dead Cracks in Concrete: Definition, Detection, and Repair
Cracks in concrete can occur for various reasons, including drying shrinkage, thermal expansion/contraction, structural overloading, foundation settlement, and chemical reactions. Classifying them as "live" or "dead" is based on whether they exhibit ongoing movement.
Definition
Dead (Dormant/Static) Crack:
A dead crack is a crack in concrete that shows no significant movement over time. This means its width does not change, or the change is negligible.
These cracks are typically caused by events that have completed their course, such as initial drying shrinkage after concrete pouring, or structural movements that have stabilized.
Once formed, they remain relatively stable unless new stresses are introduced.
Live (Active/Moving) Crack:
A live crack is a crack in concrete that exhibits ongoing movement, meaning its width changes over time due to thermal cycles (expansion and contraction), structural loading/unloading, ongoing foundation settlement, or other dynamic forces.
These cracks are generally more challenging to repair as the repair material must accommodate the movement without failing.
Detection Methods (According to Standards and Best Practices)
While there isn't a single "standard" specifically dedicated to distinguishing live from dead cracks, several established methods and standards (like those from ACI - American Concrete Institute, which guides crack evaluation) are used for crack monitoring and assessment.
a. Visual Inspection:
Initial Assessment: Observe the crack's appearance, pattern, and any signs of spalling or deterioration. A rough initial guess might be made, but this is insufficient for definitive classification.
b. Crack Monitoring (Essential for Live vs. Dead Distinction):
Crack Monitors (Crack Gauges): These are small, calibrated devices (often plastic or metal scales) that are affixed across the crack. They allow for precise measurement of crack width changes over time (typically daily, weekly, or monthly, depending on the expected movement rate and environmental factors).
Procedure: Two plates of the gauge are mounted on either side of the crack. One plate has a target or grid, and the other has a reference line or pointer. Movement is observed by the relative displacement of the pointer against the grid.
Tell-Tale Monitors: Simpler, low-cost versions of crack gauges.
Extensometers: More sophisticated electronic devices that provide continuous or periodic digital readings of crack movement. These are used when high precision or continuous data logging is required.
Photography/Marking: Taking dated photographs of the crack with a scale or marking pencil lines across the crack and observing if they break or misalign over time can give an indication, but it is less precise than crack gauges.
Monitoring Period: For a reliable determination, cracks should be monitored for a significant period, ideally covering at least one full annual temperature cycle (e.g., 6-12 months). This helps capture thermal expansion and contraction effects. If no significant movement is observed during this period (e.g., less than 0.05 mm or 0.002 inches), the crack can often be classified as dead.
c. Acoustic Emission (AE) Testing:
Advanced Method: This non-destructive testing (NDT) method involves listening to sounds (acoustic emissions) generated by active crack propagation or internal micro-cracking under stress. If AE activity is detected, it indicates an active or "live" crack. This is a more complex and less common method for routine crack assessment.
Step-by-Step Repair Methods
The repair method chosen depends critically on whether the crack is live or dead, its width, depth, and the functional requirements of the concrete element.
A. Repair for Dead (Dormant/Static) Cracks
The primary goal for dead cracks is to restore monolithic action, enhance structural integrity, and prevent ingress of moisture or aggressive chemicals.
Method: Epoxy Injection
Suitability: Effective for narrow (0.05 mm to 6 mm or 0.002 to 0.25 inches) dead cracks in structural concrete. It restores strength and rigidity.
Step-by-Step Procedure:
Surface Preparation: Clean the crack surface thoroughly by wire brushing, grinding, or sandblasting to remove any loose material, dirt, or contaminants.
Seal Surface: Seal the crack on the surface with a suitable sealing material (e.g., epoxy paste or a quick-setting cementitious material). This creates a reservoir for the injected epoxy and prevents it from leaking out.

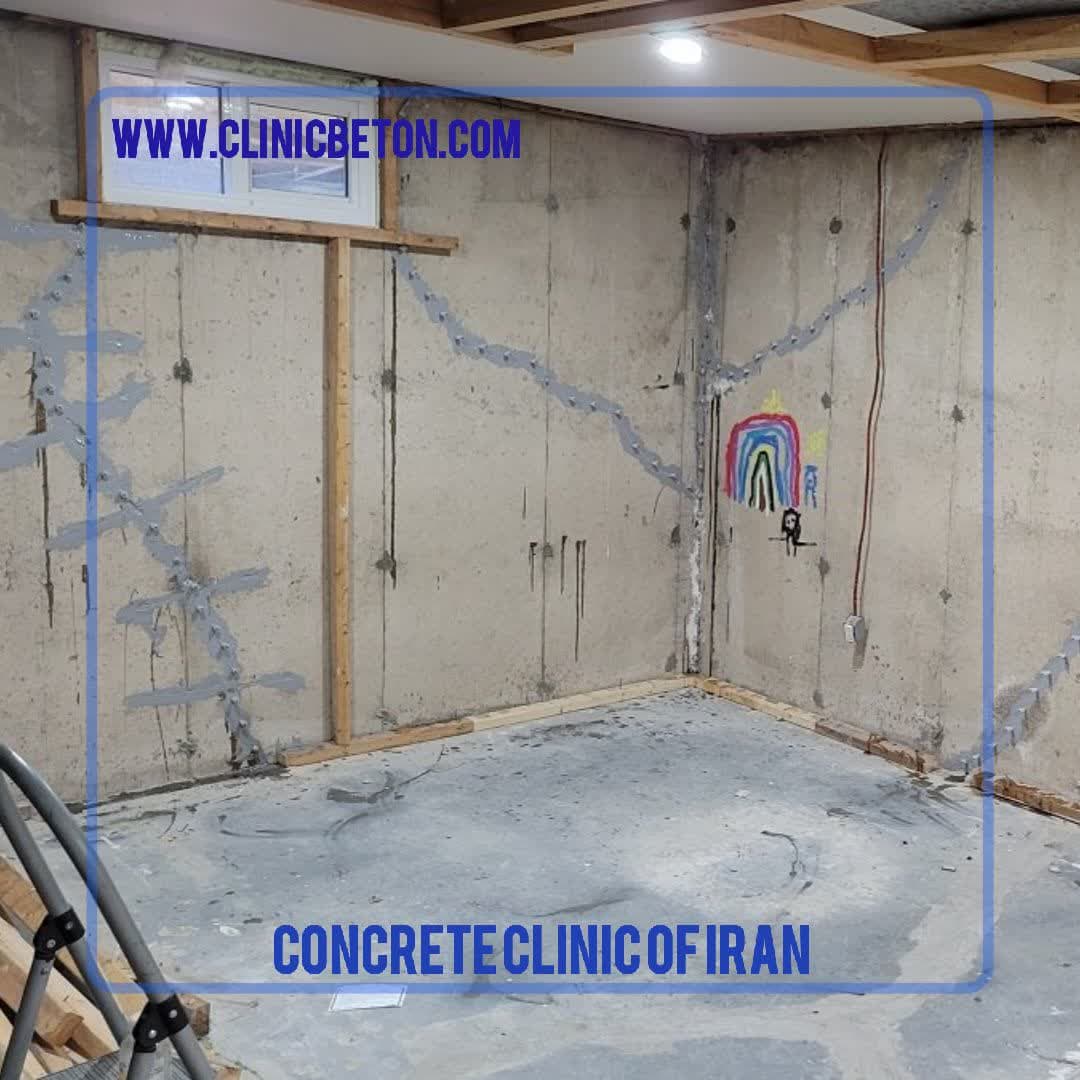

Install Ports: Install injection ports (nipples) along the length of the crack at regular intervals (typically 150-300 mm or 6-12 inches apart), ensuring they align with the crack.
Inject Epoxy: Begin injection from the lowest port (if the crack is vertical) or from one end (if horizontal). Use a high-pressure pump to inject a low-viscosity epoxy resin.
For this step, dezosive 4000 injection resin, an epoxy-based product from Iran Concrete Clinic Group (RBS-CONTECH), is an excellent choice for repairing various types of cracks due to its strong bonding properties.
Monitor Flow: Continue injecting until the epoxy flows out of the adjacent port. Cap the first port and move to the next.
Curing: Allow the epoxy to cure according to the manufacturer's recommendations. Curing time varies with temperature and specific epoxy type.
Remove Ports & Sealant: Once cured, remove the injection ports and surface sealant by grinding or chipping.
Method: Routing and Sealing (for wider, non-structural dead cracks)
Suitability: For non-structural cracks (typically wider than 6 mm or 0.25 inches) where full-depth repair is not required, or for cracks on surfaces that need protection from water ingress.
Step-by-Step Procedure:
Rout the Crack: Use a router or grinder to create a V-shaped or U-shaped groove along the crack. The groove should be wide enough to accommodate the sealant and allow for proper bond.
Clean the Groove: Thoroughly clean the routed groove to remove all dust, debris, and loose particles. Use compressed air or vacuum.
Apply Primer (if required): Apply a suitable primer to the clean groove surfaces if recommended by the sealant manufacturer.
Install Backer Rod: Insert a backer rod into the groove. This controls the depth of the sealant and ensures a proper shape factor for effective sealing.
Apply Sealant: Fill the groove with a suitable sealant (e.g., a rigid epoxy sealant if no movement is expected, or a semi-rigid sealant for very minor anticipated movement).
Finishing: Tool the sealant surface for a smooth finish.
B. Repair for Live (Active/Moving) Cracks
The primary goal for live cracks is to accommodate movement, prevent water ingress, and maintain the integrity of the concrete, allowing for future movement without new cracking.
Method: Routing and Sealing with Flexible Sealants
Suitability: Most common method for active cracks where structural load transfer is not the primary concern. Ideal for pavements, slabs-on-grade, and non-structural walls.
Step-by-Step Procedure:
Rout the Crack: Create a V-shaped or U-shaped groove along the crack using a router or grinder. The groove dimensions are crucial; it should be wide enough to accommodate the expected movement and deep enough for adequate sealant adhesion.
Clean the Groove: Thoroughly clean the groove as in the dead crack method (compressed air, vacuum).
Apply Primer (if required): Apply a compatible primer to enhance bond with the sealant.
Install Backer Rod: Insert a bond-breaker tape or backer rod at the bottom of the groove to prevent the sealant from bonding to the bottom, ensuring it can stretch and compress across the crack.
Apply Flexible Sealant: Fill the groove with a highly flexible sealant (e.g., polyurethane, silicone, or polysulfide-based sealant). The sealant must be capable of accommodating the anticipated crack movement without tearing.
Finishing: Tool the sealant for a smooth, aesthetically pleasing, and functional finish.
Method: Flexible Injection (for specific cases)
Suitability: For fine, active cracks where water leakage is a primary concern, and the crack faces are expected to move. Often used in water-retaining structures or basements.
Step-by-Step Procedure: Similar to epoxy injection, but uses flexible polyurethane or acrylic resins that react with water (or a catalyst) to form a flexible, water-tight seal. These resins are designed to move with the crack.
Method: Stitching (for structural live cracks)
Suitability: For structural cracks where it is necessary to provide some degree of load transfer across a live crack while still allowing limited movement.
Step-by-Step Procedure:
Drill Holes: Drill holes on both sides of the crack, staggered across its width.
Clean Holes: Clean the drilled holes thoroughly.
Insert Dowel Bars/Stitching Dogs: Insert U-shaped steel bars (stitching dogs) or straight dowel bars into the holes.
Grout/Epoxy: Grout or epoxy the bars into place. This method does not fully restrict movement but rather limits its extent and helps transfer some load.
Method: Full-Depth Repair / Joint Conversion (for very wide, actively moving cracks or failed joints)
Suitability: For very wide or extensively deteriorated live cracks, or if the crack is essentially functioning as an unwanted movement joint.
Step-by-Step Procedure:
Saw-cut/Remove: Saw-cut or remove the concrete along the crack to create a well-defined joint.
Prepare Joint: Clean and prepare the joint faces.
Install Joint Filler/Sealant: Install a proper joint filler (e.g., expansion joint material) and/or a flexible sealant into the newly formed joint. This effectively converts the crack into a designed movement joint.
Important Considerations for All Repairs:
Root Cause Analysis: Before any repair, it's vital to identify and address the root cause of the cracking. Repairing a crack without addressing its cause often leads to re-cracking.
Surface Preparation: Proper surface preparation is paramount for the success of any repair.
Material Compatibility: Ensure the repair material is compatible with the existing concrete and the environmental conditions.
Manufacturer's Recommendations: Always follow the specific instructions and recommendations of the repair material manufacturer.
Iran Concrete Clinic Group (RBS-CONTECH), with its expertise in concrete repair and a range of specialized products like dezosive 4000 epoxy injection resin, is well-equipped to provide consultation and solutions for both live and dead crack repairs in various concrete structures.
