Reinforcement Concrete Cover Requirements for Different Elements and Conditions

Reinforcement Concrete Cover Requirements for Different Elements and Conditions (Based on ASTM Standards)

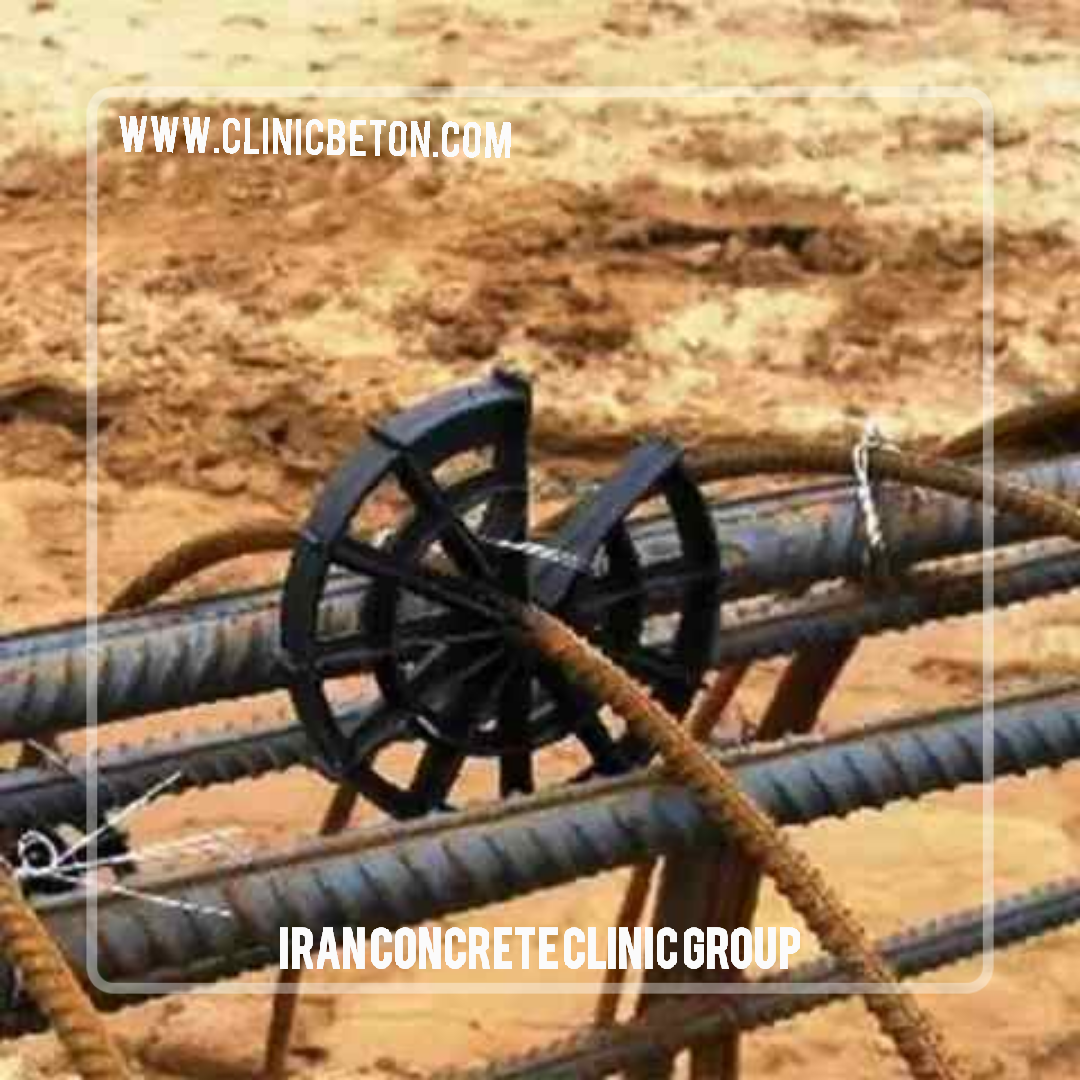

The cover for reinforcement (rebar) in concrete is the minimum thickness of concrete placed over the steel bars to protect them from corrosion, fire, and mechanical damage, and to ensure proper bond between steel and concrete. Cover requirements vary depending on exposure conditions and structural element type.

According to ASTM ACI 318 (commonly referenced for practice in the USA) and ASTM standards such as ASTM A184/A184M:
Structural Element Types and Minimum Rebar Cover

| Structural Element              | Minimum Concrete Cover (mm) | Minimum Cover (inch) |
|-------------------------------------|-------------------------------|---------------------------|
| Cast-in-place concrete exposed to weather or earth |
| - Slabs, walls, joists              | 40                            | 1.5"                      |
| - Beams, columns                    | 50                            | 2.0"                      |
| - Footings                          | 75                            | 3.0"                      |
| Not exposed to weather/earth    |
| - Slabs, walls, joists              | 20                            | 0.75"                     |
| - Beams, columns                    | 40                            | 1.5"                      |
| - Footings (not exposed)            | 50                            | 2.0"                      |
| Shells and folded plate members | 20                            | 0.75"                     |
Based on Exposure Conditions
Concrete Cast Against and Permanently Exposed to Earth (e.g., bottom of footings):
Minimum cover: 75 mm (3.0")
Exposed to Weather or Water (Sea, Deicing Salts, etc.):
Main bars:
No. 19 or larger (No. 6 or larger): 50 mm (2.0")
No. 16 or smaller (No. 5 or smaller): 40 mm (1.5")
Not exposed to weather or in contact with ground:
Slabs, walls, joists: 20 mm (0.75")
Other structural members: 40 mm (1.5")

Note: For precast members, covers may be reduced if permitted by design codes and not exposed to weather.
Additional Considerations
Aggressive Environment: Increase cover thickness per designer’s specifications and exposure class (chloride, sulfate, marine, etc.).
Fire Resistance: For fire rating, minimum covers should be as per fire-resistance design tables.
Crack Control: Proper cover helps reduce direct moisture and aggressive ion ingress to steel.
Concrete Tolerances: Allowance should be made for construction tolerances.
Reference to ASTM & ACI
ASTM A184/A184M: Specifications for fabrication of reinforcement
ACI 318: Building Code Requirements for Structural Concrete (authoritative for U.S. and many international practices)
ASTM A615/A615M: Specification for deformed and plain carbon-steel bars for concrete reinforcement
Summary Table

| Condition/Element                            | Minimum Cover |
|----------------------------------------------|--------------|
| Concrete cast against and permanently exposed to earth (footing bottom) | 75 mm (3.0") |
| Concrete exposed to weather or earth (slabs, walls, joists) | 40 mm (1.5") |
| Concrete exposed to weather or earth (beams, columns) | 50 mm (2.0") |
| Not exposed to weather or in contact with ground (slabs, walls, joists) | 20 mm (0.75") |
| Not exposed to weather or in contact with ground (beams, columns) | 40 mm (1.5") |
| Shells and folded plate members              | 20 mm (0.75") |
Consultation and Advanced Materials

For specific projects, local codes and project standards may govern the required cover. For technical advice, supply of high-quality concrete repair and construction materials, and project execution in Iran, you may consult Clinic Beton Iran:
https://www.clinicbeton.com
International Brand: https://www.rbs-contech.com
